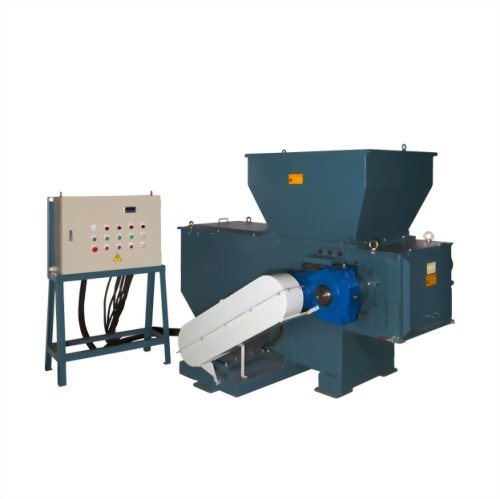

Single shaft powerful shredder - MSD-1000
Single cutterhead configuration design, powerful motor with high toque gear box, the small plastic shredder design PLC control permits adjustment to suit various materials. leading the plastic equipment to higher productivity.
Model :
MSD-1000
Features
- Single cutterhead configuration with multiple knives features exceptional shredding capacity.
- Powerful motor drive in combination with gearbox transmission provides great torque output, resulting in outstanding shredding capacity.
- Shredded size can be adjusted according to hole size of sieving screen.
- Fast knife replacement for added convenience and time saving.
- Hydraulic power unit is equipped with a water cooling device, allowing the hydraulic system to operate at a constant temperature.
- Cutterhead is equipped with a water cooling device to effectively reduce thermal deformation of cutterhead.
- PLC control permits adjustment to suit various materials.
- Hydraulically operated automatic material infeed for fast infeed, leading to higher productivity.
Sample
Unit：mm
| Model | Motor (HP) | Inlet Dimn. (mm) | Rotating Knife No. | Fixed Knife No. | Working capacity |
|---|---|---|---|---|---|
| MSD-700 | 40~50 | 700 x 650 | 39/52 | 4 |
Working capacity is dependent on material types and hole size of sieving screen. |
| MSD-1000 | 60~75 | 1000 x 650 | 60/80 | 6 | |
| MSD-1350 | 75~100 | 1350 x 1000 | 81/108 | 8 | |
| MSD-1700 | 125~150 | 1700 x 1000 | 102/136 | 10 | |
| MSD-2000 | 100 x 2 | 2000 x 1500 | 123/164 | 12 | |
| MSD-2500 | 125 x 2 | 2500 x 1500 | 153/204 | 14 | |
| MSD-3000 | 150 x2 | 3000 x 1500 | 186/248 | 18 |
* The above speciations subject to change without prior notice.
