• DOUBLE CUTTERHEAD COUFIGURATION POWERFUL SHREDDER

Double Cutterhead Coufiguration Powerful Shredder - SD-395100

Model : SD-395100

Features

  • Double cutterhead coufiguration, constructed with multiple knives for extremely powerful shredding capacity.
  • The knives are manufactured from special alloy steel, hardened for long service life.
  • Powerful motor combined wit gear box drive for great torgue output and ensuring superior shredding performance.
  • The heavy pitch gear are prevision manufactured form special alloy steel, hardened for durability.
  • Oil bath labricated gear box assured smooth running at all tumes.
  • The machine is ruggedly constructed making it ideal for long term operations.
  • Available to fit with a conceyor for delivering the waste to a crusher.
  • Custom specifications are available upon request.
  • Designed for shredding various wastes, such big plastic product, sprue, tire, pallet, wood, electric wire, circuit board, paper product, aluminum can, rubber and plastic products ..etc.

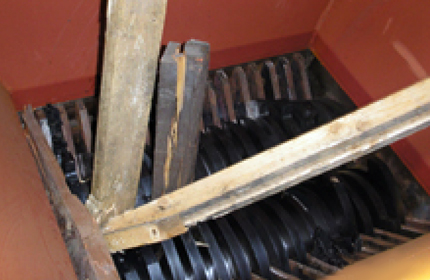

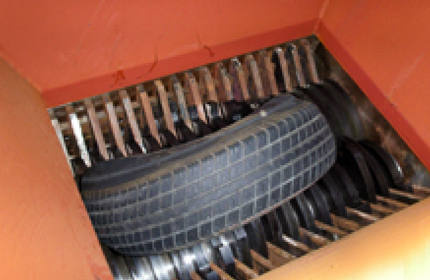

Sample

Unit:mm
Model Motor Inlet Dimn Spindle No. Knife No.
SD-19510 10~15 500x456 2 25m/m x 18pcs. 30m/m x 15pcs.
SD-19515 15~20 500x606 2 25m/m x 24pcs. 30m/m x 20pcs.
SD-24520 20~30 630x606 2 25m/m x 24pcs. 30m/m x 20pcs.
SD-24530 30~40 630x846 2 30m/m x 28pcs.
SD-29530 40~50 750x726 2 30m/m x 24pcs.
SD-29540 50~60 750x966 2 30m/m x 32pcs. 40m/m x 24pcs.
SD-29550 60~75 750x1206 2 30m/m x 40pcs. 40m/m x 30pcs.
SD-34550 75~100 850x806 2 40m/m x 20pcs. 50m/m x 16pcs.
SD-34560 100~125 850x1206 2 40m/m x 30pcs. 50m/m x 24pcs.
SD-39575 125~150 1000x966 2 40m/m x 24pcs. 60m/m x 16pcs.
SD-395100 150~200 1000x1206 2 40m/m x 30pcs. 60m/m x 20pcs.
SD-395150 200~300 1000x1506 2 50m/m x 30pcs. 60m/m x 25pcs.
* The above specifications are subject to change without prior notice.
* Production rate may be varied with actual operation conditions.
