Industrial plastic processing handles vast volumes of manufacturing waste, transforming bottles, films, and off-cuts into reusable materials. Effective size reduction is the first step to streamline washing and extrusion operations while minimizing transport costs and environmental impact. This guide explains what plastic shredder machines are, outlines key benefits—like volume reduction and compliance—and explores common shredder types from single-shaft units to granulators. Use this resource to match your material profile and production needs with the right equipment and boost recycling efficiency.

What Is a Plastic Shredder Machine?

A plastic shredder machine is industrial equipment designed to break down, cut, or grind plastic products into smaller, more manageable pieces. It uses rotating blades on one or more shafts to apply shear and tearing forces. By reducing bulky items to uniform flakes or strips, shredder machines enable easier handling, transport, and downstream processing for recycling or remanufacturing.

Applications

• Recycling: Initial size reduction of post-consumer and post-industrial plastic waste.
• Regrinding: Preparing scrap and off-spec materials for re-extrusion or pelletizing.
• Volume Reduction: Compacting large items into smaller pieces to cut storage and freight costs.
• Feedstock Preparation: Producing uniform input for injection molding, blow molding, and compounding.

Typical Materials

• Bottles: PET and HDPE containers.
• Film & Wrap: Plastic bags, stretch film, and packaging sheets.
• Housings: ABS and PP toy or appliance casings.
• Bulk Items: Pipes, drums, crates, and industrial containers.
• Manufacturing Scrap: Off-cuts, sprues, and other production leftovers.

Why Shred Plastic? Key Benefits

1. Volume Reduction

Shredding cuts bulky items into compact, uniform pieces. Smaller flakes and strips take up less space in storage bins, hoppers, and shipping containers. This downsizing slashes transport costs and reduces the number of haul trips, boosting logistics efficiency and cutting carbon emissions.

2. Pre-Recycling Preparation

Uniform shredded output rinses and dries more evenly during the washing and separation stages. Consistent particle size helps centrifuges and sifters remove contaminants like paper labels, adhesives, and residues. Clean, homogenous feedstock minimizes downtime from blockages and ensures higher-quality recycled resin.

3. Enhanced Throughput

By pre-processing plastics into consistent flakes, shredders streamline downstream operations. Extruders, injection molding machines, and blow-molding lines run at peak speeds when feedstock flows smoothly. Reduced material bridging and fewer machine stops translate to higher production rates and lower unit costs.

4. Regulatory Compliance

Many regions enforce strict waste-processing and emissions laws. Shredding supports compliance by enabling proper sorting, contaminant removal, and volume controls. It also integrates with dust-capture and mist-control systems to meet air-quality standards. Properly shredded plastics reduce the risk of spills and workplace hazards, satisfying both environmental regulations and safety mandates.

Common Plastic Shredder Types

Plastic recycling and size-reduction needs vary by material rigidity, throughput, and desired output size. Below is an overview of the most widely used shredder configurations—each engineered to handle specific waste streams and operational demands:

1. Single-Shaft Shredders

Single-shaft units come with one rotor fitted with cutting blades that pass material against a stationary knife. They typically run at 300–1,200 RPM (Revolutions Per Minute) and handle up to 5 tons per hour of flexible film, bags, and light packaging. Built-in screens let you control flake size on the fly, while hydraulic or pneumatic rams push material evenly into the cutting chamber. Maintenance is straightforward—blade changes and screen swaps take minutes, making them ideal for operations that switch feedstocks or output specs frequently.

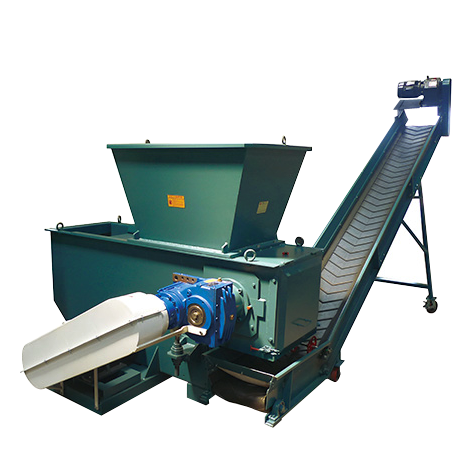

2. Double-Shaft Shredders

Dual-shaft machines use two intermeshing rotors that turn at 50–200 RPM, creating high torque for tough, bulky items. Capacities range from 1 to 10 tons per hour, depending on rotor diameter and knife configuration. Their self-feeding action pulls in rigid containers, drums, and e-waste without manual loading, while slow speeds reduce noise and dust. Knife clearances can be adjusted under load to avoid jams, and reversible drive motors let you clear blockages quickly, minimizing downtime.

3. Bevel/Claw-Cutter Granulators

These granulators spin at medium speeds (400–800 RPM) and use bevel- or claw-shaped knives to shear plastics into 2–6 mm granules. They’re mounted close to injection or blow-molding machines for in-line recycling of sprues, runners, and edge trimmings. A compact footprint and easy-access cutter chamber simplify cleaning and knife sharpening. Their consistent granule size feeds directly into hoppers, reducing material handling steps and boosting cycle times on molding lines.

4. Universal Powerful Granulators

Universal granulators pair a high-torque rotor (up to 3,000 Nm) with heavy-duty screens to process rigid housings, thick-walled parts, and complex shapes. Throughputs can exceed 8 tons per hour when equipped with large-feed hoppers and automatic screen changers. Adjustable rotor speeds and knife angles let you fine-tune output size and particle shape. Robust frames and vibration-dampening mounts ensure stable operation in 24/7 recycling centers, while easy-lift cutter blocks speed maintenance.

5. Sheet & Edge-Trim Granulators

Tailored for flat sheet and trim scrap, these units feature narrow inlets (100–300 mm) that guide material into a sharp, low-speed cutting chamber. They produce uniform flakes (1–4 mm) at rates of 500 kg to 2 tons per hour, depending on sheet thickness. Their smooth feed rails and self-cleaning knives prevent re-feeding issues, and replaceable wear plates protect the housing from abrasion. Compact design lets you tuck them into wash lines or extrusion feeds, reducing floor space and handling steps.

FAQs for Plastic Size Reduction

Q1: What’s the difference between crushing and shredding?

Crushing uses impact or compression to fracture hard, brittle plastics like PET bottles or containers. It’s fast for small, rigid items but can generate uneven particle sizes.

Shredding employs rotating blades to slice and tear large, tough items—such as drums, vehicle parts, and e-waste—into uniform flakes. This method handles bulky waste better and produces consistent output for downstream processes.

Q2: What’s the best method to size-reduce plastics?

The optimal method depends on material type and end use. For thin films, bags, and light packaging, single-shaft shredders offer high speed and adjustable blade clearance for uniform particle sizes. For rigid or bulky items, dual-shaft shredders provide greater torque and self-feeding action. Granulators—including bevel/claw, universal, and edge-trim types—deliver precision cuts and controlled output, critical before pelletizing or compounding. When choosing equipment, consider expected throughput, blade geometry, ease of maintenance, and final flake size to ensure efficient, cost-effective processing.

Elevate Your Recycling Efficiency with Us

At WEI SHENG, we understand that precise matching of shredder type to your material stream and throughput is key to seamless operations. Whether you handle flexible films in single-shaft units or tackle rigid drums with dual-shaft and granulator solutions, our machines deliver the torque, blade life, and safety features you need.

Explore detailed specifications and configuration options. For personalized recommendations and a tailored quote, our team is ready to assist. Simply fill out the contact form, and we’ll guide you to the ideal shredding solution.
